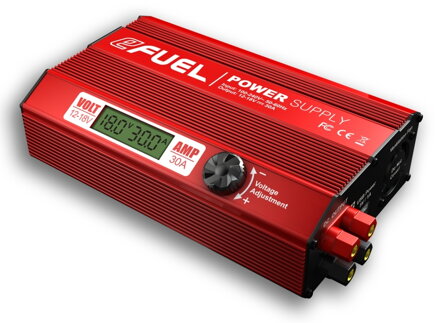

With 540 W output power, an adjustable output voltage of 15-30V and active PCF, the eFuel 540W is certainly one of the most powerful power supplies on the market. This makes it ideal for extremely powerful chargers or for supplying multiple chargers or consumers at the same time.
Thanks to the possible input voltage of 100-240V, the power supply can be used worldwide without any adjustments. The output voltage can easily be adjusted via a wheel and monitored via the LCD display. The output current is also displayed here.
DC output
Main output can deliver up to 50 amps and the three side outputs up to 10 amps each. They have an on / off switch so you do not always have to pull the cables when not in use.
LCD display
Shows the output voltage and the current
AC input 100-240V
Worldwide use without additional accessories possible and completely safe
Two USB outputs
With 5 volts and 2100mA in total to load iPad, smartphone or other
Smart fan
Switches on automatically at temperatures above 50 ° C
security features
Overload, overvoltage, overheating and short circuits at the output make the device extremely safe and reliable
Technical specifications:
Dimensions (LxWxH): 218 x 139 x 59.5mm
Weight: 1.620kg
Input voltage: 100-240V AC
Input frequency: 50-60Hz
Output voltage: 15-30V DC ± 0.5V
Output current: 30A ± 1A
Overload protection: = 51A 500MS
Fuse: 20A fuse
LCD display
Volt accuracy: ± 0.3V
Current accuracy: ± 0.5A
Power efficiency: 89%
Power Factor:> 0.98
Overheating protection: <65 ° C
Cooling method: fan
Operating temperature: 0-40 ° C
